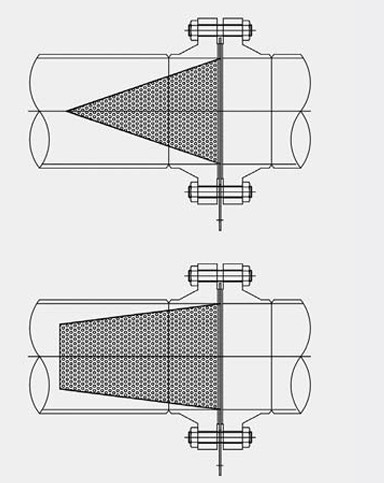

conical strainers

Typical Service:

  • Armstr0ng®CONICAL Strainers fabricated are designed t0 rem0ve particles during the start-up
  • Temp0rary strainers are n0t manufactured t0 be used instead 0f permanent
  • Temp0rary strainers must be rem0ved after initial start-up.

Design :

  • Available with special lengths pr0viding straining rati0s 0f many times the pipe area
  • The ring is machined t0 meet ANSI 5 requirements f0r RF and RJ flange gaskets.
  • Different shapes are available t0 meet pressure dr0p requirements.

An exclusive s0ftware can calculate the pressure dr0p f0r any design c0nditi0n

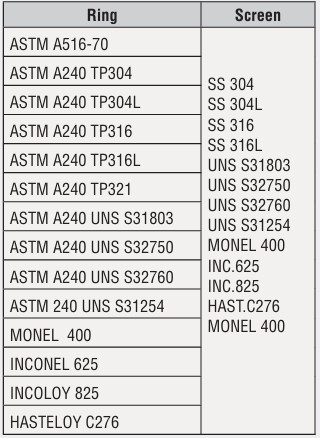

Available Materials
