Tee strainers
Typical Service:
- Armstrong® fabricated TEE Strainers are designed to remove foreign particles from pipelines.
- These strainers provide effective and economical protection of pumps, valves and other similar more costly equipment.
Design Code:
ASME B31.3
Range:
- Size from 2” to 90” – Class 150-300-600-900-1500-2500 lbs
- Straight type and Angle type
Design :
- TEE type strainers are fabricated at the highest industrial standard from ANSI/ASME Tee fittings (B16.9) and flanges (B16.5).
- The screen guide is carefully hand-adjusted to ensure a close match between body and screen.
- The screen is manufactured with perforated plate or wire mesh (or both) in stainless steel or other alloys to customer’s requirements.
- Guide rods, of the same material of the body, allow an easy removal of the screen for cleaning or replacement.
- Different screen shapes are available to meet pressure drop requirements.
- An exclusive software can calculate the pressure drop for any design condition.
Manufacturing:
- Full traceability of all parts of all strainers ever produced.
- All strainers are individually Hydrostatic tested and/or checked with examination on BW welds and MPI/DPI on Fillet welds.
- Quality System to ISO 9001
Optional Special Features:
- Connections: Clamp or special flanges
- Drain: Any combinations of nipples, flanges, sockolet, weldolet, valves and plug
- DP Gauge: Optional connections
- Lining: Epoxy
- Coating: Any internal/external painting cycle
General Notes:
- STD blow off plug ¾”NPT
- Flanged ends to ASME B16.5
- BW Ends to ASME B16.25
- Cover flange to ASME B16.5 – ASME B16.47

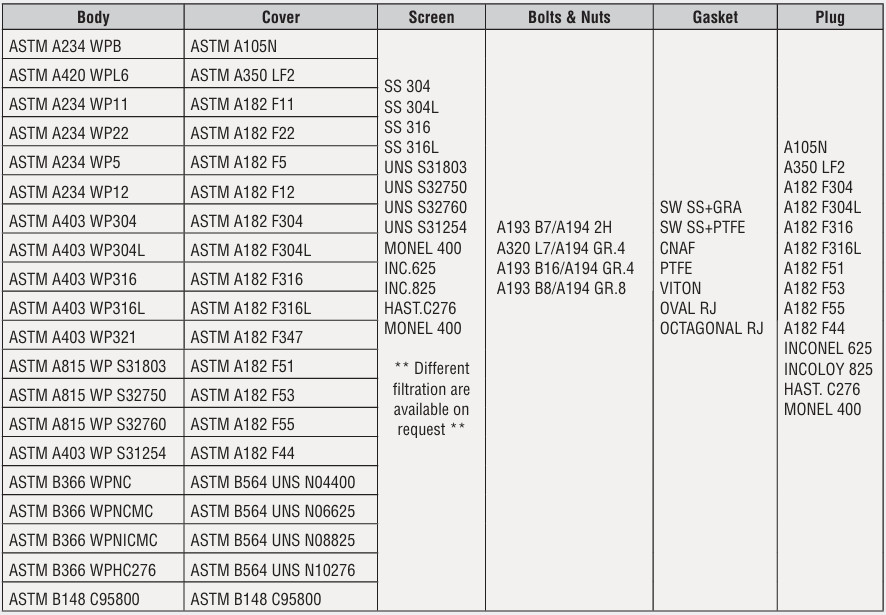

Available Materials
Tee Strainer
