Armstrong International 880 Series Inverted Bucket Steam Traps are designed to provide reliable and energy-efficient condensate drainage for a wide range of steam-using equipment. Known as one of the most dependable steam trap technologies available, the inverted bucket design ensures long-lasting performance, minimal steam loss, and reduced maintenance requirements.
Surya Sankara Trading is the authorized Armstrong Business Associate, supplying high-quality steam trap solutions along with expert technical support for industrial steam systems.

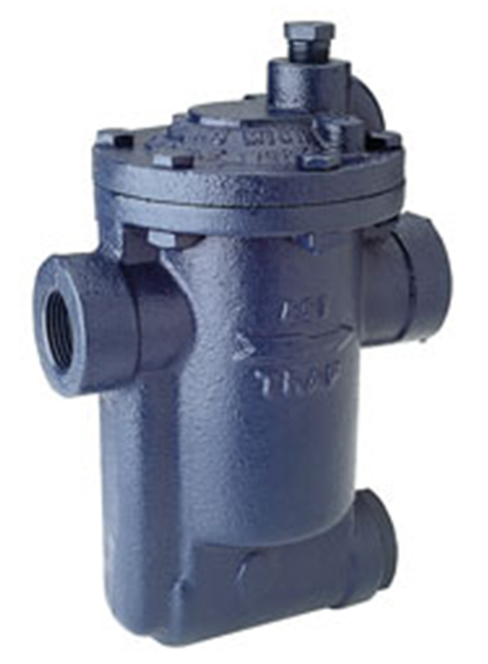

Armstrong 880 Series Inverted Bucket Steam Trap
The 880 Series is a cast iron inverted bucket steam trap designed for horizontal installation. It features an integral strainer, continuous air venting at steam temperature, a free-floating stainless steel mechanism, and a discharge orifice positioned at the top of the trap for enhanced reliability and performance.
Its rugged construction and advanced operating mechanism make it ideal for demanding industrial applications where durability, efficiency, and low maintenance are essential.
Key Features and Benefits
- Durable cast iron body for long service life
- Designed for horizontal installation
- Integral strainer helps protect internal components from dirt and debris
- Free-floating stainless steel mechanism reduces wear and friction
- Continuous automatic air and CO2 venting at steam temperature
- Discharge orifice located at the top prevents dirt accumulation
- Water seal design minimizes live steam loss
- Efficient condensate drainage with intermittent discharge operation
- Resistant to water hammer and harsh operating conditions
- Fully repairable design for lower maintenance and replacement costs
- Improves steam system efficiency and energy savings
Advanced Operating Principle
The Armstrong inverted bucket steam trap uses a unique leverage system that multiplies the force generated by the bucket to open the valve against system pressure. Since the mechanism has no fixed pivots, wear and friction are significantly reduced, ensuring dependable long-term operation.
The top-mounted mechanism prevents dirt from collecting around the orifice, while suspended particles are removed during the purging cycle when the bucket sinks and opens the valve.
A small vent hole in the bucket provides continuous automatic air and CO2 venting, helping maintain efficient heat transfer and proper system performance.
Reliable Performance for Industrial Steam Systems
Armstrong 880 Series Inverted Bucket Steam Traps are engineered to deliver consistent condensate removal without allowing condensate backup. Their robust design and resistance to water hammer make them a trusted choice for industrial steam applications requiring reliable operation and maximum energy efficiency.
With Armstrong International’s proven steam trap technology and the dependable support of Surya Sankara Trading, industries across Telangana can improve steam system reliability, reduce energy waste, and lower operational costs.
