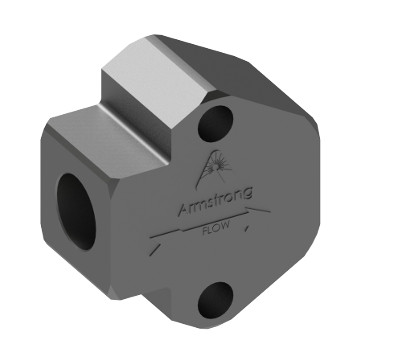

Dual Orifice Trap
DOT 7000 Series
Description Series DOT-7000 is ideally intended for use on shipboard steam systems where steam is created from demineralized or purified water and does not contain the minerals and impurities typically found in land based steam systems. Series DOT-7000 Series is intended for condensate drain applications seeing constant steam supply and return pressures, and condensate loads which are not variable. Series DOT-7000 is installed in conjunction with a 2-bolt connector
How does scale impact cooling systems? Scale significantly disrupts efficiency and functionality by acting as a scaffolding for biofilm formation. This biofilm, often containing algae, accumulates in piping systems and thrives in cooling towers with sunlight exposure. The result is reduced energy efficiency, increased power consumption, water waste, and potential system failures.
Even a small accumulation of biofilm acts as an insulator, hindering a cooling towers ability to cool and this drives up energy costs. According to a California Society for Healthcare Engineering research study, just 0.15 mm of biofilm increases energy use by 5.3% in cooling towers. When it reaches 0.9 mm (less than 1/32” inch), energy consumption skyrockets by 32.2%.
Maximum Operating Conditions Maximum allowable pressur
Connections:
- Screwed NPT and BSPT
- Socketweld
- Flanged (consult factory)

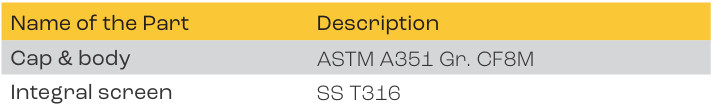

Materials Specification
360° Connector Styles
- Standard connector
- IS-2 connector with integral strainer
- TVS-4000 2-bolt connector block
