Integral Strainer
is - 2

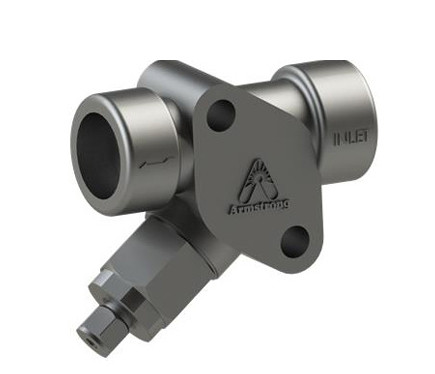

IS-2 Stainless Steel Connector with Integral Strainer Provides
- A full line stainless steel strainer in the connector eliminates leak points and reduces installation time
- A strainer that is not discarded when the trap is replaced
- Easy strainer screen replacement
- Optional blowdown valve
- Accommodates Armstrong’s inverted bucket, disc, thermostatic, thermostatic wafer, bimetallic, and float and thermostatic traps. Any manufacturer’s 2-bolt steam trap can also be applied to Armstrong’s IS-2 connector
Maximum Operating Conditions
Maximum allowable pressure:
830 psig (57.2 barg) @ 800°F (427°C)
1400 psig (96.5 barg) @ 100°F (38°C)
Refer to Trap Specifications for further operating conditions
Maximum allowable pressure:
830 psig (57.2 barg) @ 800°F (427°C)
1400 psig (96.5 barg) @ 100°F (38°C)
Refer to Trap Specifications for further operating conditions
Connector Styles
- IS-2 connector with integral strainer
- IS-2 connector with integral strainer with blowdown valv

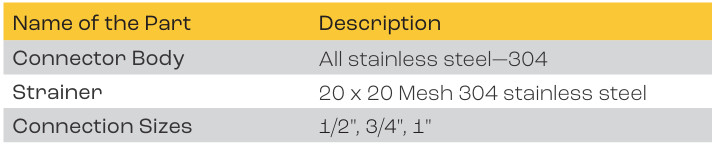

Materials Specification:
Connection Type:
- Screwed NPT and BSPT
- Socketweld
- Flanged (consult factory)CD4080
